New HOWO TX 6X4 Diesel Dump Trucks Chassis with Left Steering

New HOWO TX 6X4 Diesel Dump Trucks Chassis with Left Steering
New HOWO TX 6X4 Diesel Dump Trucks Chassis with Left Steering New HOWO TX 6X4 Diesel Dump Trucks Chassis with Left Steering New HOWO TX 6X4 Diesel Dump Trucks Chassis with Left Steering New HOWO TX 6X4 Diesel Dump Trucks Chassis with Left Steering New HOWO TX 6X4 Diesel Dump Trucks Chassis with Left Steering New HOWO TX 6X4 Diesel Dump Trucks Chassis with Left Steering

Grote Afbeelding :  New HOWO TX 6X4 Diesel Dump Trucks Chassis with Left Steering

Productdetails:
Place of Origin: China
Merknaam: Howo TX
Certificering: ISO CCC
Model Number: jnhtc
Betalen & Verzenden Algemene voorwaarden:
Minimum Order Quantity: 1 UNIT
Prijs: USD23100-25410
Packaging Details: nude
Delivery Time: 45 Work days
Payment Terms: L/C, T/T
Supply Ability: 50 units per week

New HOWO TX 6X4 Diesel Dump Trucks Chassis with Left Steering

beschrijving
Horsepower: 400hp Emission Standard: Euro 2
Fuel Tank: 400L Drive Wheel: 6x4
Tyres: 12.00R20 Capacity (Load): 21 - 30T
Markeren:

HOWO TX 6X4 dump truck

,

left steering dump truck chassis

,

heavy duty diesel dump truck

New HOWO TX 6X4 Diesel Dump Trucks Chassis with Left Steering
Key Specifications
Horsepower 400hp
Emission Standard Euro 2
Fuel Tank 400L
Drive Wheel 6x4
Tyres 12.00R20
Capacity (Load) 21 - 30T
Technical Specifications
Cabin: HW70(NO BED); HW76(SINGLE BED)
Engine:
Model Wd615.62 | Wd615.87 | Wd615.69
Fuel Diesel
Displacement 9.726L
Emission Standard EURII
Power 196(266)/2200 | 213(290)/2200 | 247(336)/2200
Torque 1100/1100-1600 | 1160/1160-1600 | 1350/1100-1600
Transmission:
Model HW19710
Control model MT
Front Axle: HF9 drum-type rated load of 9tons
Rear Axle: St16 16tons speed ratio:3.93 4.42 4.8
Clutch: Single-plate dry diaphragm spring clutch, diameter 430(B)mm, hydraulically operating with air assistance
Steering: ZF8098
Suspension: Leaf spring suspension
Fuel tank 300L
Tyres 12.00R20
Dump Truck Overview

A dump truck, also known as a tipper truck, is used for transporting loose materials such as sand, gravel, or demolition waste for construction purposes.

Types of Dump Trucks
  • Standard Dump Truck: Has a truck chassis with a dump body mounted to the frame. The bed is raised by a hydraulic ram.
  • Articulated Dump Truck: Features a hinge between the cab and the dump box but is distinct for its all-wheel-drive capability.
  • Transfer Dump Truck: A standard dump truck pulling a separate trailer that can also be filled with materials.
  • Side Dump Truck: Has hydraulic rams that tilt the dump body to the side, dumping materials to the left or right.
  • Super Dump Truck: A standard dump truck with a trailing axle, capable of carrying larger loads.
Key Features
  • Capacity: Measured in cubic yards or tons, indicating how much material it can carry.
  • Hydraulics: Used to lift the bed and dump the contents.
  • Chassis: The frame that supports the dump body.
Common Uses
  • Construction: Transporting construction materials like sand, gravel, and concrete.
  • Mining: Hauling ore or other mined materials.
  • Landscaping: Moving soil, mulch, and other landscaping materials.
  • Waste Management: Transporting waste materials from construction sites or demolition projects.
Safety Considerations
  • Load Distribution: Ensuring the load is evenly distributed to prevent tipping.
  • Hydraulic Maintenance: Regular maintenance of the hydraulic system to ensure proper functioning.
  • Driving Precautions: Training for drivers to handle the large and heavy nature of dump trucks, especially when loaded.

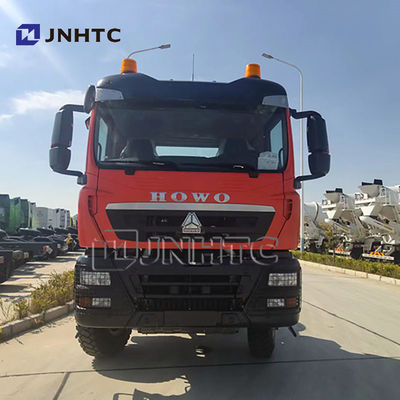

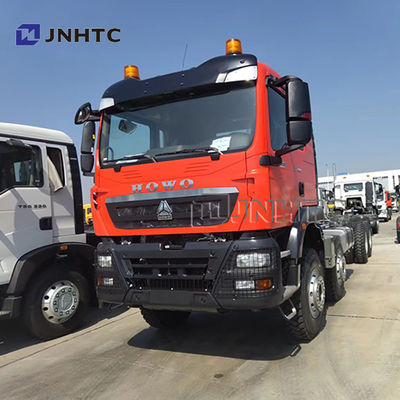

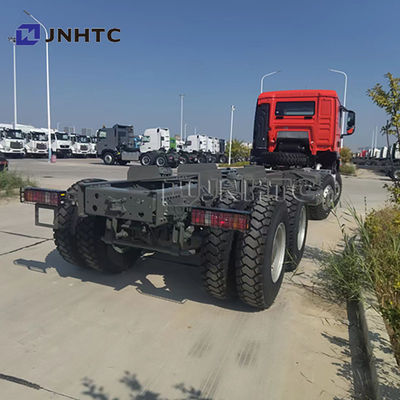

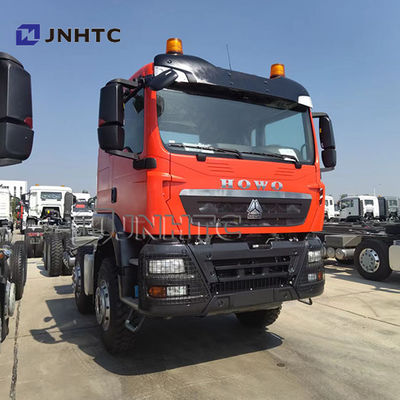

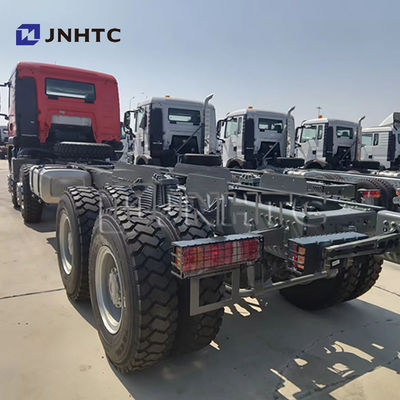

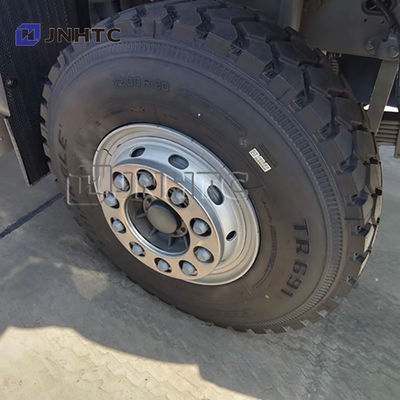

Product Images
